DTV48HDI020

DTV48HDI020

DTV48HDI020

€208,86 EUR
€0,00 EUR €208,86 EUR
Sale On demand
Shipping calculated at checkout.
View full details

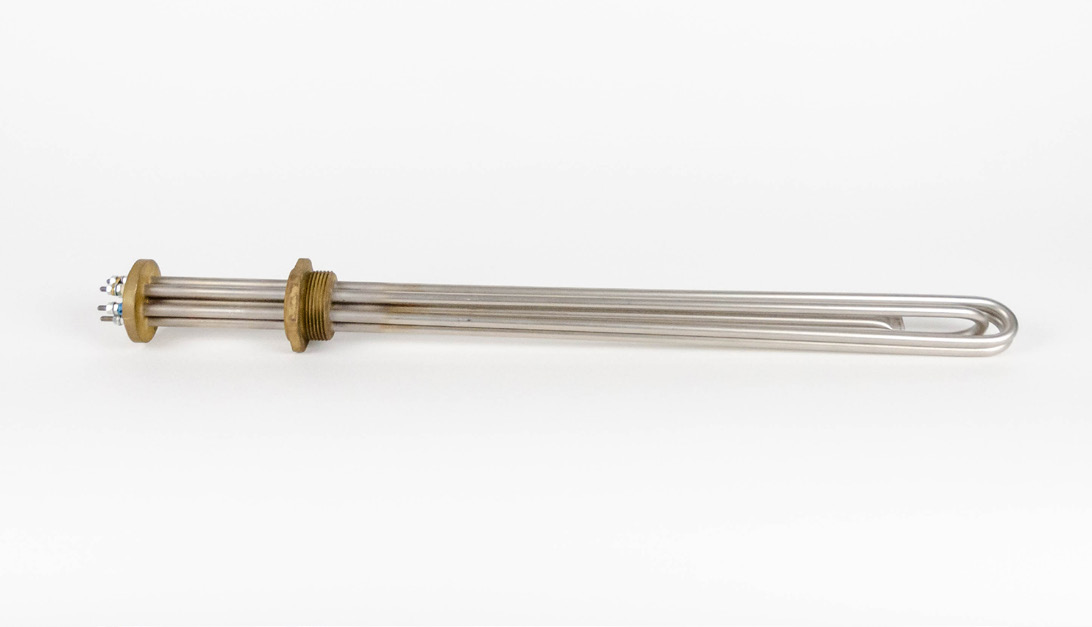

Screw plug immersion heater (M48) with Ø 57 mm front flange (100 mm offset), equipped with Ø 8,5 mm SS 321 heating elements and an integrated thermostat pocket (Ø 8 x 0,5 mm), developed and refined for the heating of high temperature oil (≤ 250°C). The screw plug and flange are made of brass. Specifications: 230V / 400V – 2000W – 2,5 W/cm² – 1,38 kg – immersion length of 570 mm – non-heated length of 30,4 mm (away from screw plug). Optional ALU connection box small or large is available.
Type of Application High temperature oil (≤ 250°C)
Connection Type 240VAC
Power 2000.0 W
Specific Wattage 2.5 W/cm²
Length 717.0 mm
Height 58.0 mm
Width 63.0 mm
Immersion Length 570.0 mm
Screwplug / Flange Size M48
Certification CE
Materials
  • Heating elements: SS321
  • Screw plug: Brass
Options
  • ALU connection box large: DKBA105-P1 (for thermostat)
  • ALU connection box small: DKBA078-P1 (no regulation)

Stay tuned! Product options will be available soon.

Datasheet will be available shortly.
