DTV48I120

DTV48I120

DTV48I120

€177,06 EUR
€0,00 EUR €177,06 EUR
Sale On demand
Shipping calculated at checkout.
View full details

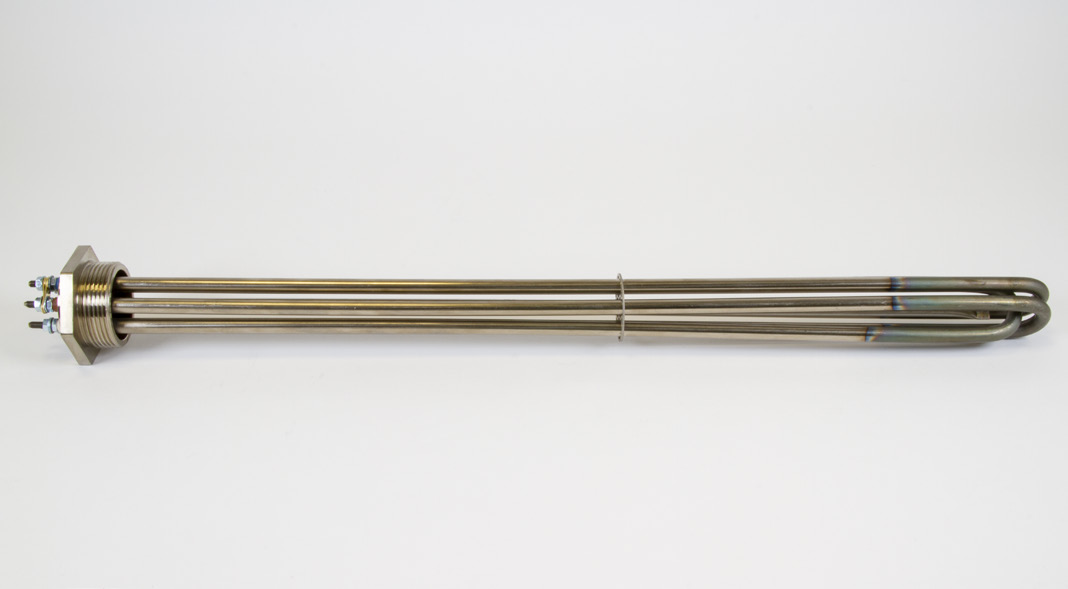

Screw plug immersion heater (M48) equipped with Ø 8,5 mm Incoloy 825 heating elements and an integrated thermostat pocket (Ø 8 x 0,5 mm), developed and refined for the heating of water with additives. The screw plug is made of SS 304. Specifications: 230V / 400V – 12000W – 12,5 W/cm² – 1,40 kg – immersion length of 700 mm – non-heated length of 51 mm (away from screw plug). Optional ALU connection box small or large is available.
Type of Application Water with additives
Connection Type 240VAC
Power 12000.0 W
Specific Wattage 12.5 W/cm²
Length 747.0 mm
Height 58.0 mm
Width 63.0 mm
Immersion Length 700.0 mm
Screwplug / Flange Size M48
Certification CE
Materials
  • Heating elements: Incoloy825
  • Screw plug: SS304
Options
  • ALU connection box large: DKBA105-P1 (for thermostat)
  • ALU connection box small: DKBA078-P1 (no regulation)

Stay tuned! Product options will be available soon.

Datasheet will be available shortly.
