1 1

DTV60EG015

DTV60EG015

DTV60EG015

€105,42 EUR
€0,00 EUR €105,42 EUR
Sale On demand
Shipping calculated at checkout.
View full details

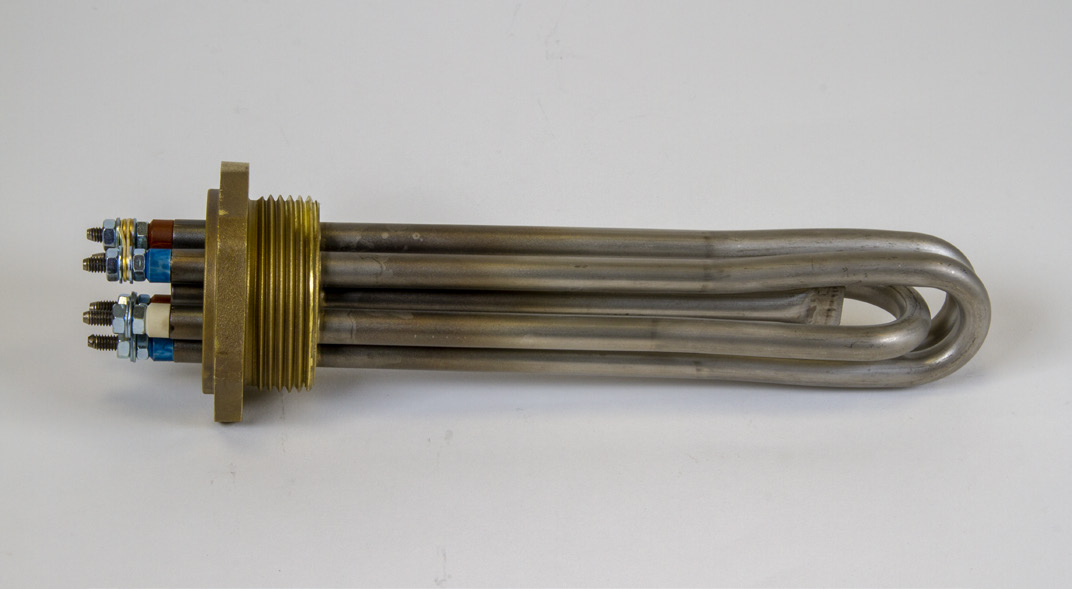

Screw plug immersion heater (G2) equipped with Ø 8,5 mm SS 321 heating elements and an integrated thermostat pocket (Ø 8 x 0,5 mm), developed and refined for the heating of glycol water (max. 50%). The screw plug is made of brass. Specifications: 230V / 400V – 1500W – 5 W/cm² – 0,82 kg – immersion length of 235 mm – non-heated length of 42,4 mm (away from screw plug). Optional ALU connection box small or large is available.
Type of Application Glycol water (max. 50%)
Connection Type 240VAC
Power 1500.0 W
Specific Wattage 5.0 W/cm²
Length 290.0 mm
Height 74.0 mm
Width 82.0 mm
Immersion Length 235.0 mm
Screwplug / Flange Size G 2"
Certification CE
Materials
  • Heating elements: SS321
  • Screw plug: Brass
Options
  • ALU connection box large: DKBA105-P1 (for thermostat)
  • ALU connection box small: DKBA078-P1 (no regulation)

Stay tuned! Product options will be available soon.

Datasheet will be available shortly.
