TBR-RBC-DN250-106-360

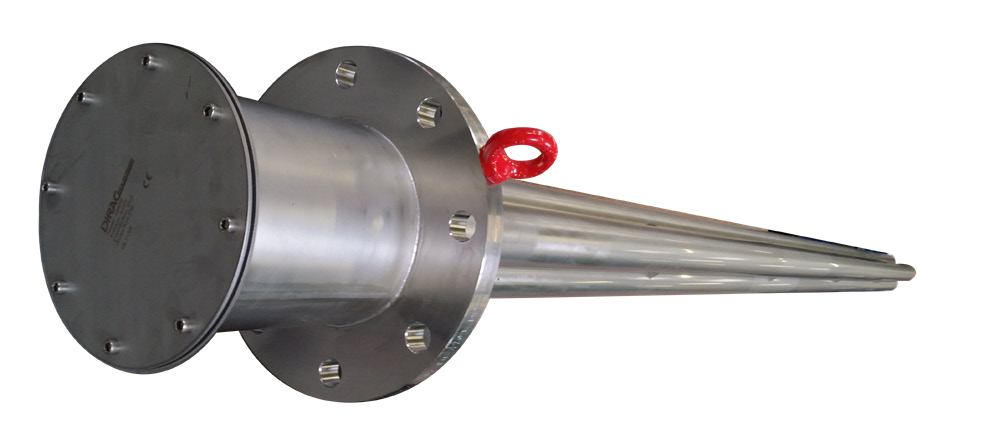

Flanged immersion heater equipped with welded SS304 multi-pocket (6 pieces) for fitting of ceramic core elements (RBC HT Ø54mm), designed for efficient liquid heating via natural of forced convection. Specifications: DN250 / PN16 - 230V single-phase / 3x400V three-phase (Y) - 36000W (6x6000W) - 3,9 W/cm² - immersion length of 1055mm including 125mm non-heated. Connection Box on flange and available optional thermal pocket.
