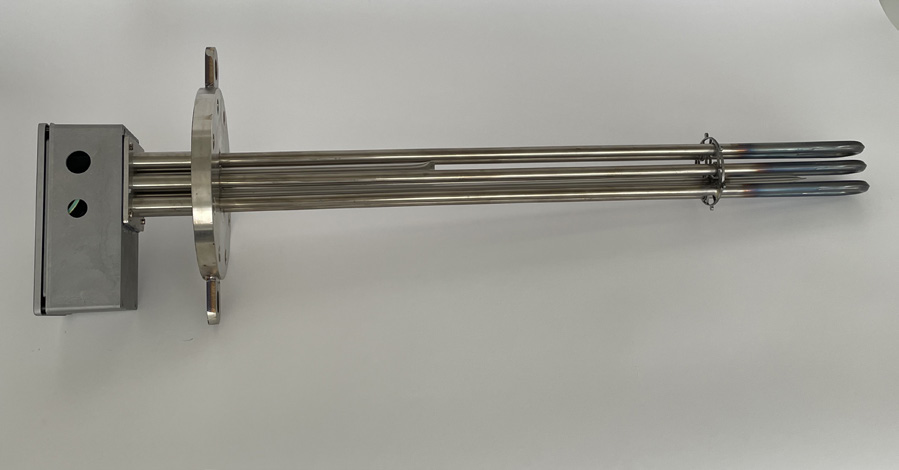

TBREG-126-DN150

Flanged immersion heater equipped with Ø14mm SS321 heating elements (welded on flange) and integrated thermostat and limiter pockets (Ø10 x 1 mm), developed and refined for the heating of glycol water (max 50%). The flange is made of SS304. Specifications: DN150 / PN16 (9 elements) - 3x400V three-phase (Y) - 48kW - 5 W/cm² - immersion length of 1255mm. Standard version with Connection Box on flange.
