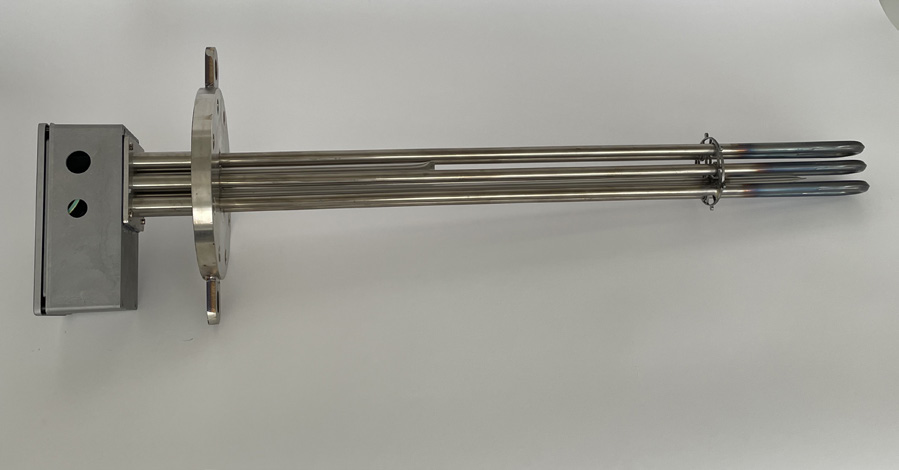

TBREI-73-DN150

Flanged immersion heater equipped with Ø14mm SS316L heating elements (welded on flange) and integrated thermostat and limiter pockets (Ø10 x 1 mm), developed and refined for the heating of city water. The flange is made of SS304. Specifications: DN150 / PN16 (9 elements) - 3x400V three-phase (Y) - 54kW - 10 W/cm² - immersion length of 725mm. Standard version with Connection Box on flange.
