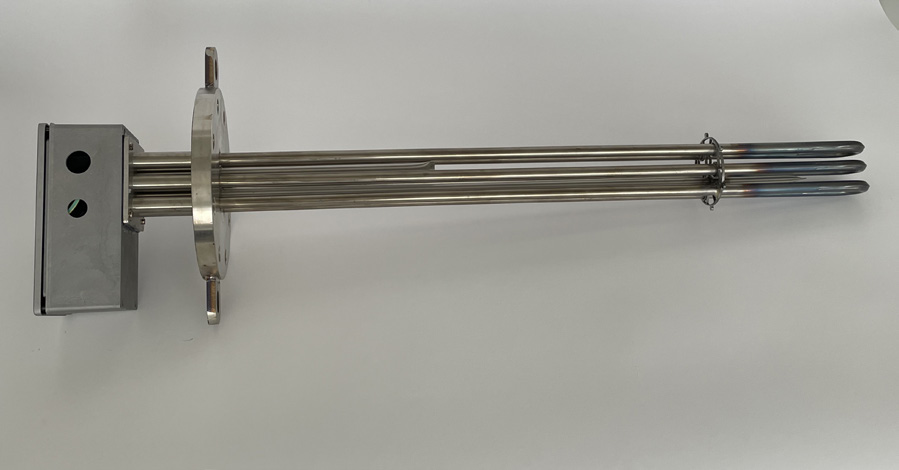

TBRHI-95-DN125

Flanged immersion heater equipped with Ø14mm SS321 heating elements (welded on flange) and integrated thermostat and limiter pockets (Ø10 x 1 mm), developed and refined for the heating of oil (≤ 120°C). The flange is made of SS304. Specifications: DN125 / PN16 (6 elements) - 3x400V three-phase (Y) - 12kW - 2,5 W/cm² - immersion length of 950mm. Standard version with Connection Box on flange.
