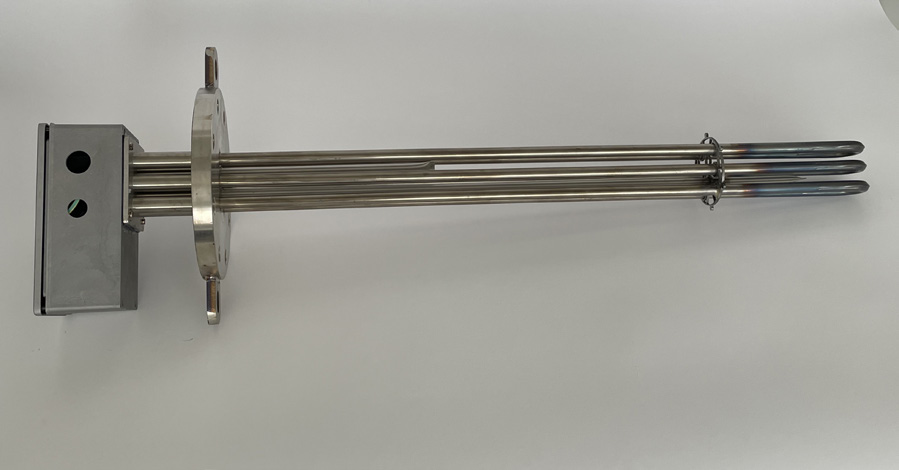

TBRI-102-DN250

Flanged immersion heater equipped with Ø14mm Incoloy 825 heating elements (welded on flange) and integrated thermostat and limiter pockets (Ø10 x 1 mm), developed and refined for the heating of water with additives. The flange is made of SS304. Specifications: DN250 / PN16 (36 elements) - 3x400V three-phase (Δ) - 384kW - 12,5 W/cm² - immersion length of 1020mm. Standard version with Connection Box on flange.
