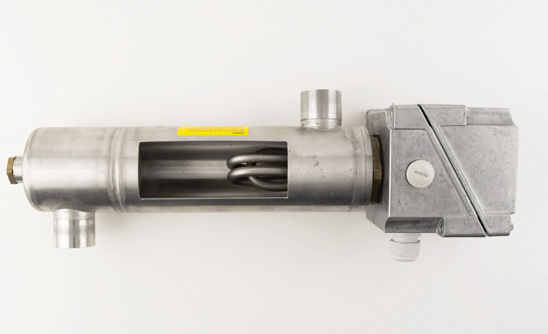

DRVI47EI020

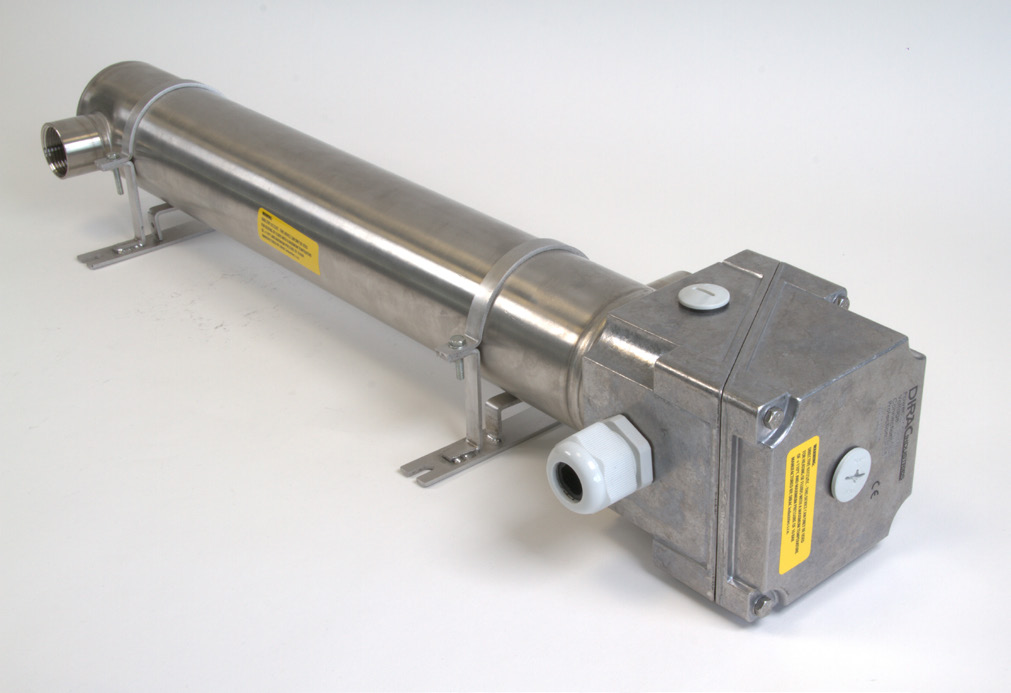

Non-insulated screw plug recirculation heater (G1½) equipped with Ø8,5mm SS316L heating elements and an integrated thermostat pocket (Ø8 x 0,5mm), developed and refined for the heating of city water. The screw plug is made of brass. Specifications: 230V single-phase / 3x230V three-phase / 3x400V three-phase - 2000W - 10 W/cm² - total length of 630,5mm. Additional features: SS316L housing, IP55 ALU Connection Box, Fluid in-/outlet G1, Fitting 6½ for output temperature measurement and M4 electrical connections.
