DRVI47I075

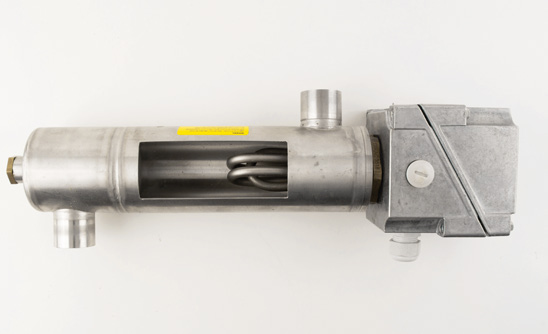

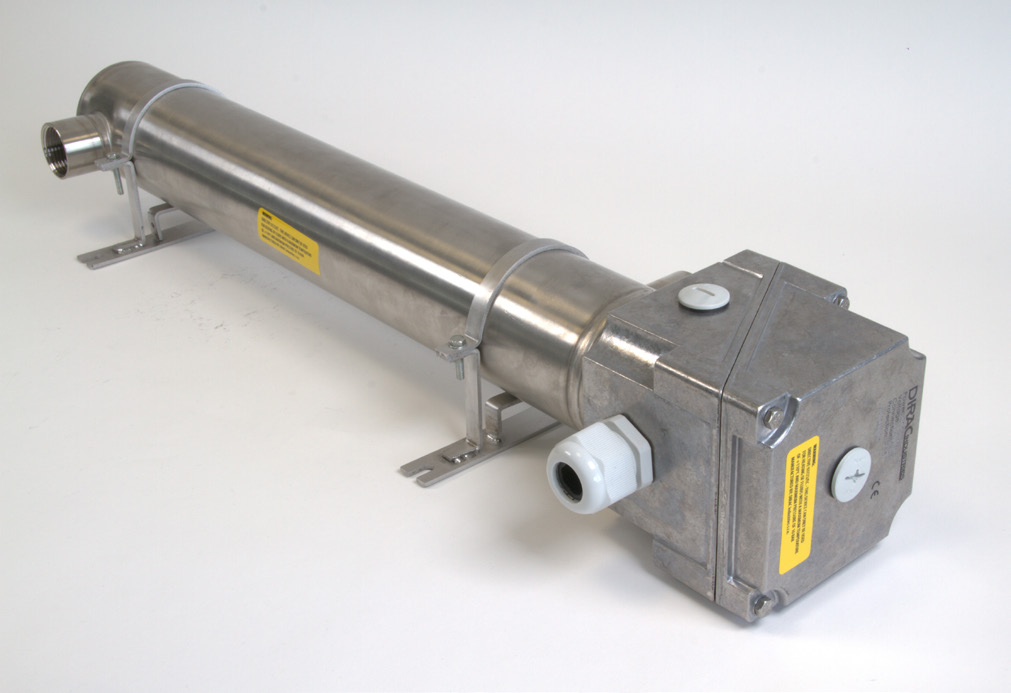

Non-insulated screw plug recirculation heater (G1½) equipped with Ø8,5mm Incoloy 825 heating elements and an integrated thermostat pocket (Ø8 x 0,5mm), developed and refined for the heating of water with additives. The screw plug is made of SS304. Specifications: 230V single-phase / 3x230V three-phase / 3x400V three-phase - 7500W - 12,5 W/cm² - total length of 852,5mm. Additional features: SS316L housing, IP55 ALU Connection Box, Fluid in-/outlet G1, Fitting 6½ for output temperature measurement and M4 electrical connections.
