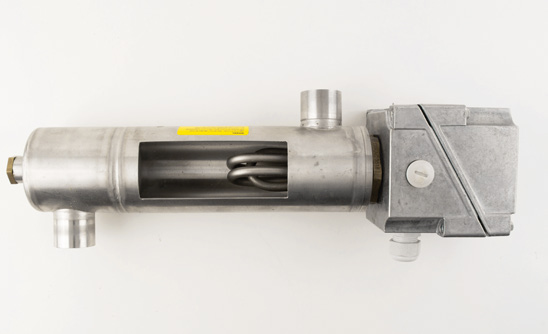

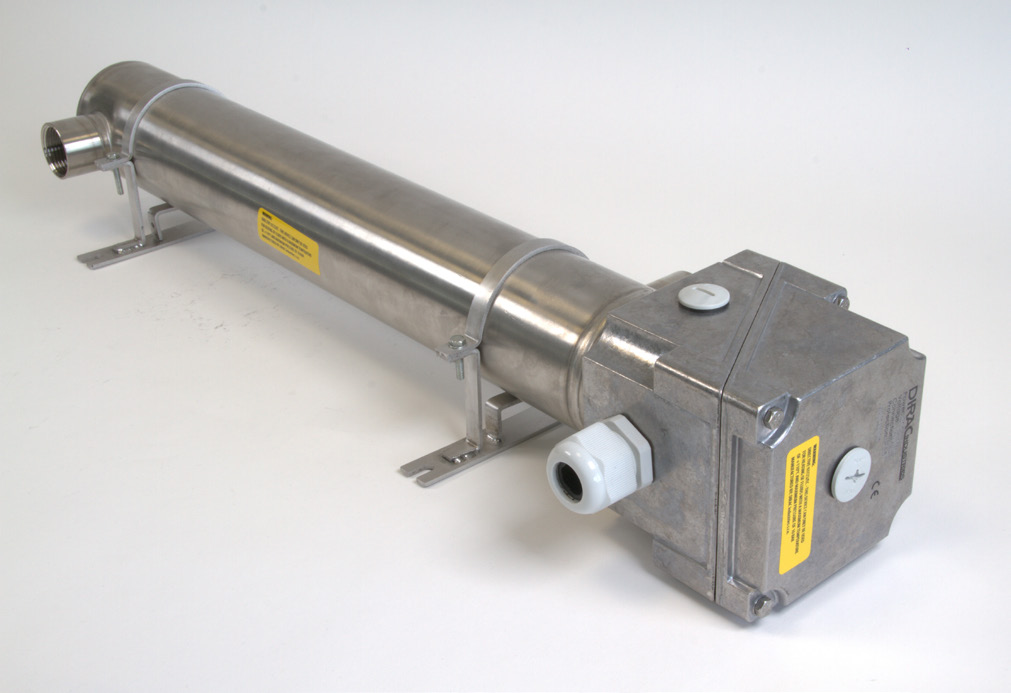

DRVI77EI180

Non-insulated screw plug recirculation heater (M77) equipped with Ø14mm SS316L heating elements and an integrated thermostat pocket (Ø10 x 0,5mm), developed and refined for the heating of city water. The screw plug is made of brass. Specifications: 230V single-phase / 3x230V three-phase / 3x400V three-phase - 18000W - 10 W/cm² - total length of 1363mm. Additional features: SS316L housing, IP55 ALU Connection Box, Fluid in-/outlet G2, Fitting 6½ for output temperature measurement and M6 electrical connections.
