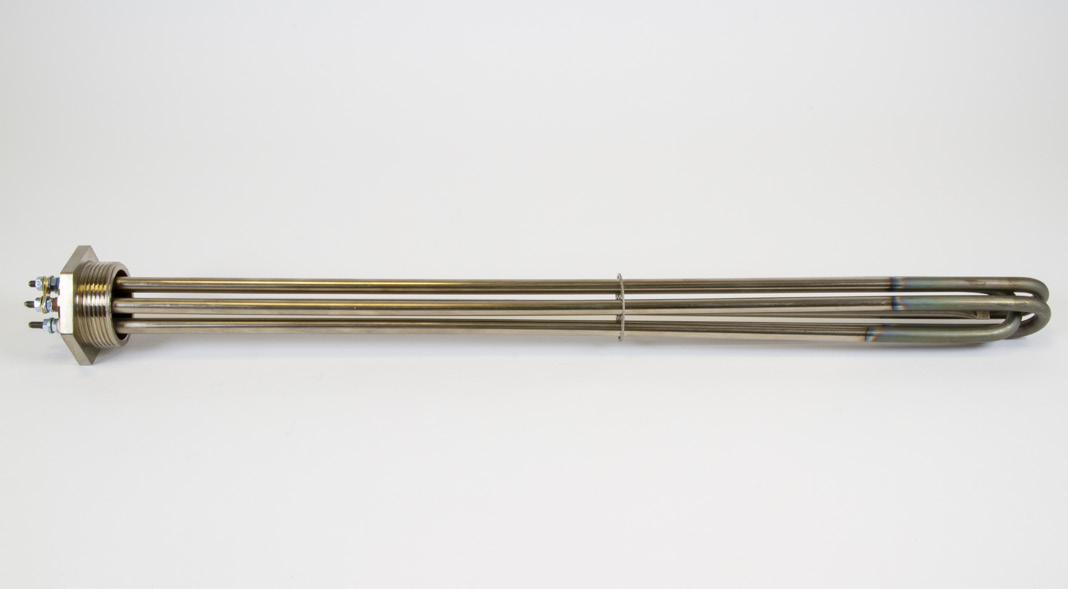

Screw plug immersion heater (G1½) equipped with Ø 8,5 mm Incoloy 825 heating elements and an integrated thermostat pocket (Ø 8 x 0,5 mm), developed and refined for the heating of water with additives. The screw plug is made of SS 304. Specifications: 230V / 400V – 3000W – 12,5 W/cm² – 0,62 kg – immersion length of 205 mm – non-heated length of 50 mm (away from screw plug). Optional ALU connection box small or large is available.
Type of Application Water with additives
Connection Type 240VAC
Power 3000.0 W
Specific Wattage 12.5 W/cm²
Length 252.0 mm
Height 58.0 mm
Width 63.0 mm
Immersion Length 205.0 mm
Screwplug / Flange Size G 1 1/2"
Certification CE
Materials
  • Heating elements: Incoloy825
  • Screw plug: SS304
Options
  • ALU connection box large: DKBA105-P1 (for thermostat)
  • ALU connection box small: DKBA078-P1 (no regulation)
