DTV60HDI005

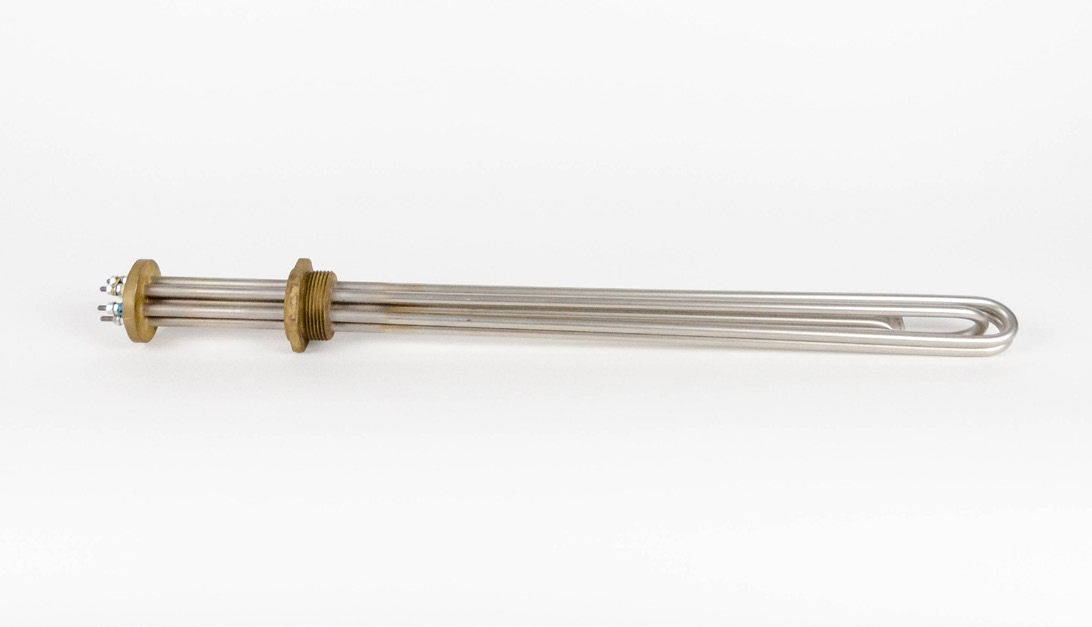

Extended screw plug immersion heater (G2) with Ø57mm front flange (100mm offset), equipped with Ø8,5mm SS321 heating elements and an integrated thermostat pocket (Ø8 x 0,5mm), developed and refined for the heating of oil at high temperature (≤ 250°C). The screw plug and flange are made of brass. Specifications: 230V / 400V - 500W - 2,5 W/cm² - immersion length of 170mm - non-heated length of 30,4mm from screw plug. Optional ALU connection box small/large is available.
