DTV60HI020

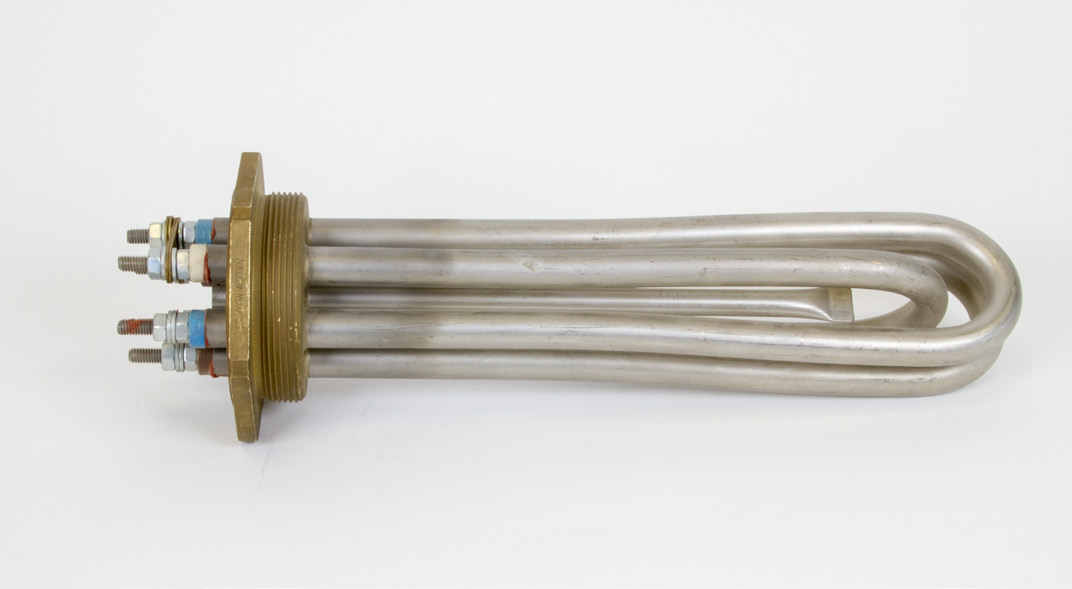

Screw plug immersion heater (G2) equipped with Ø8,5mm SS321 heating elements and an integrated thermostat pocket (Ø8 x 0,5mm), developed and refined for the heating of oil (≤ 120°C). The screw plug is made of brass. Specifications: 230V / 400V - 2000W - 2,5 W/cm² - immersion length of 570mm - non-heated length of 42,4mm from screw plug. Optional ALU connection box small/large is available.
