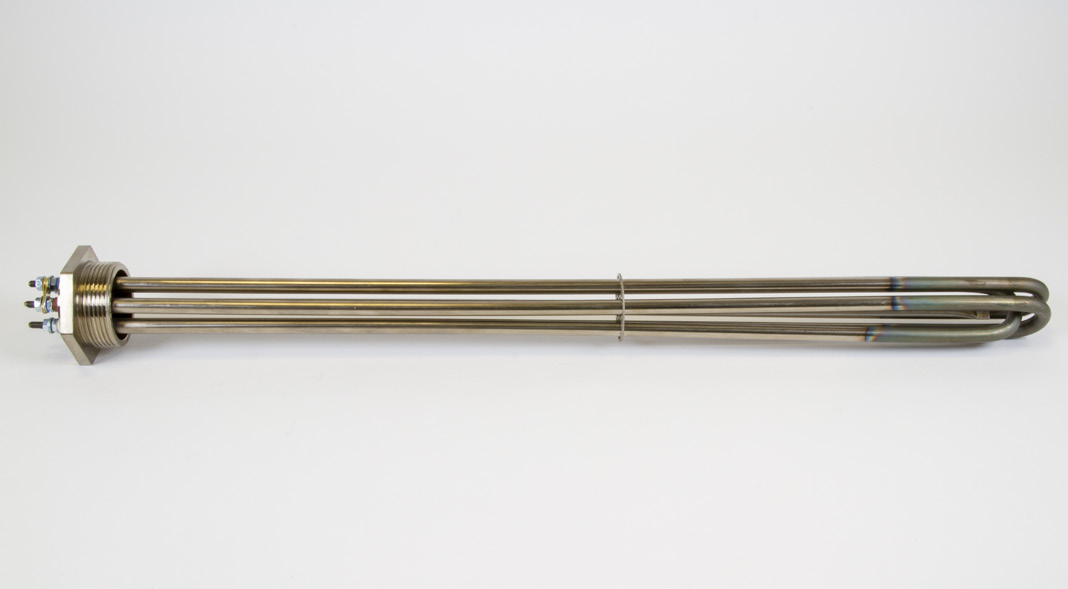

DTV60I120

Screw plug immersion heater (G2) equipped with Ø8,5mm Incoloy 825 heating elements and an integrated thermostat pocket (Ø8 x 0,5mm), developed and refined for the heating of water with additives. The screw plug is made of SS304. Specifications: 230V / 400V - 12000W - 12,5 W/cm² - immersion length of 700mm - non-heated length of 51mm from screw plug. Optional ALU connection box small/large is available.
