DTV75EI320

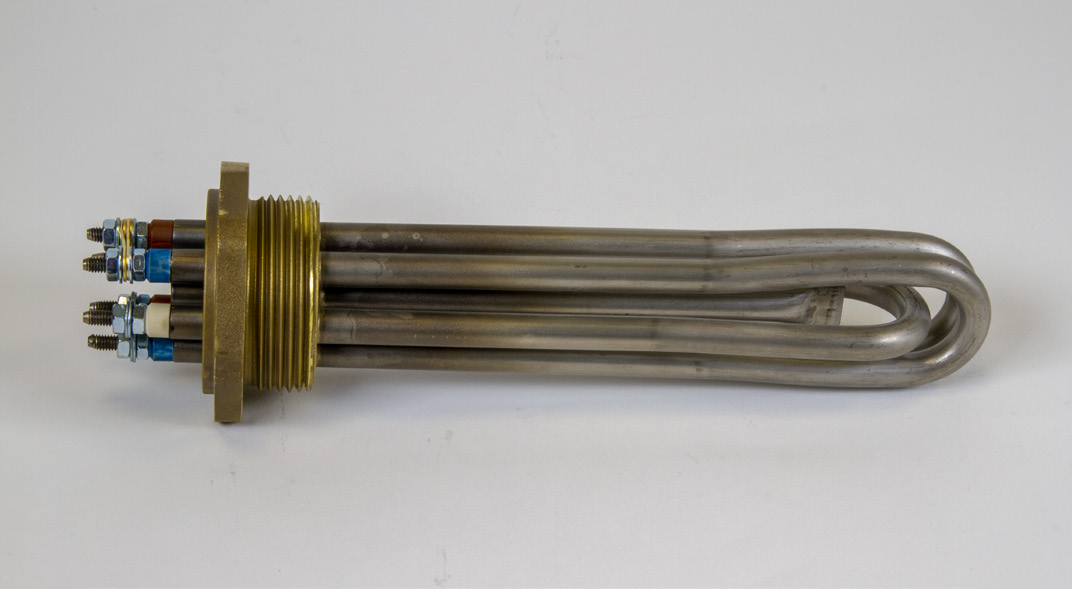

Screw plug immersion heater (G2½) equipped with Ø14mm SS316L heating elements and an integrated thermostat pocket (Ø10 x 0,5mm), developed and refined for the heating of water. The screw plug is made of brass. Specifications: 3x400V 3Ph (Δ) - 32000W - 10 W/cm² - immersion length of 1255mm - non-heated length of 42mm from screw plug. Optional ALU connection box large is available.
